No.
Code
Name
Start date
Price
No.
Code
Name
start date
Price

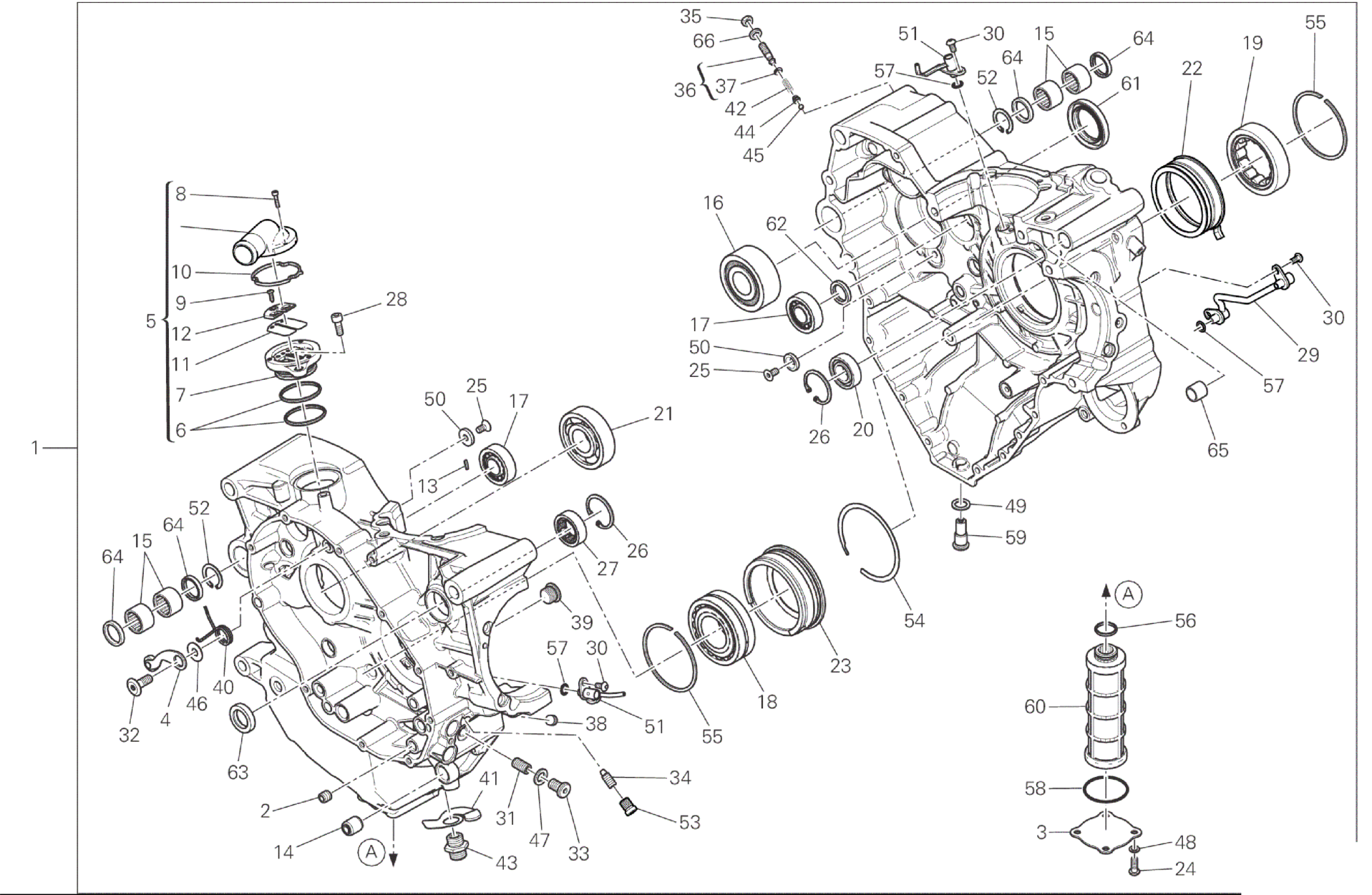

1
22523111C
COMPLETE HALF-CRANKCASES PAIR
01/12/2015
€
3115.94
2
067049310
BUSH
08/01/2015
€
1.90
3
24713511C
FILTER COVER UNIT
08/01/2015
€
10.00
4
45520181A
GEAR FIXING CLICK ASSEMBLY
08/01/2015
€
7.46
5
59320911A
VALVE, BREATHER
27/11/2015
€
68.55
6
46320222A
O-RING
06/07/2012
€
2.90
7
59310601B
HOLDER READ VALVE
06/07/2012
€
25.22
8
77150078B
SCREW
06/07/2012
€
0.90
9
77250341B
SCREW, TAPPING 3.5X12
06/07/2012
€
0.90
10
78811151A
GASKET
06/07/2012
€
2.90
11
81110021A
REED VALVE ASSY
06/07/2012
€
4.90
12
82716031A
SPACER
06/07/2012
€
3.90
13
68050101A
KEY 2X2X10
08/01/2015
€
14.30
14
70010362A
DAMPER
08/01/2015
€
8.83
15
764000004
BEARING, NEEDLE
08/01/2015
€
7.19
16
70240131A
BEARING
08/01/2015
€
79.71
17
70240331A
BEARING 17X40X12
08/01/2015
€
64.42
18
70241151A
BEARING
01/03/2014
€
106.42
19
70241161A
BEARING
27/11/2015
€
75.12
20
70250081A
BALL BEARING 6003 TN9 C3
08/01/2015
€
9.88
21
70250193A
BEARING
08/01/2015
€
24.34
22
71011991B
BUSHING
27/11/2015
€
94.10
23
71011941A
BUSHING
08/01/2015
€
91.00
24
72050338B
SCREW
08/01/2015
€
0.90
25
720941616
SCREW TSPEI M6X12
08/01/2015
€
0.90
26
735033380
CIRCLIP
08/01/2015
€
0.90
27
757941542
BEARING
08/01/2015
€
30.21
28
77150653B
SCREW TCEI M6X16 UNI5931 8.8
08/01/2015
€
0.90
29
87512321A
HOSE, OIL
15/12/2015
€
19.93
30
77510311B
SCREW TBEI M5X10
08/01/2015
€
3.90
31
77840041A
THREADED DOWEL M10X1
08/01/2015
€
1.90
32
77910391A
SCREW M8X21.5
08/01/2015
€
1.90
33
77911622A
THREADED PLUG
08/01/2015
€
1.90
34
77917101B
SCREW, SPECIAL
08/01/2015
€
1.90
35
74710151A
NUT
08/01/2015
€
0.90
36
77927171A
SCREW
08/01/2015
€
9.38
37
88641961A
O-RING
18/04/2011
€
0.90
38
77950621A
THREADED DOWEL M10X1
08/01/2015
€
0.90
39
78010721A
PLUG BY-PASS M16X1.5
08/01/2015
€
6.83
40
79910491A
SPRING, RETURN
08/01/2015
€
3.90
41
79920771C
BYPASS SPRING
08/01/2015
€
8.22
42
79940171A
SPRING
08/01/2015
€
1.90
43
81510281A
BOLT UNION
08/01/2015
€
7.21
44
83110151B
PLATE
08/01/2015
€
4.90
45
84740061A
BALL
08/01/2015
€
0.90
46
85210532A
WASHER 8.2X20X1
08/01/2015
€
0.90
47
85211951A
GASKET TH.2
08/01/2015
€
0.90
48
85250231A
GASKET
08/01/2015
€
0.90
49
85250421A
COPPER GASKET 12.2X18X1.5 MM
08/01/2015
€
0.90
50
85611481A
WASHER
08/01/2015
€
1.90
51
87512131A
JET
08/01/2015
€
36.02
52
88440531A
SPRING RING
08/01/2015
€
0.90
53
78011041A
SCREW, SPECIAL
27/11/2015
€
2.90
54
88440651A
SPRING RING
08/01/2015
€
1.90
55
88450581A
SPRING RING
08/01/2015
€
1.90
56
88640331A
O-RING 17.96X2.62
08/01/2015
€
1.90
57
88641181A
O RING 2031
08/01/2015
€
0.90
58
88641581A
O-RING
08/01/2015
€
1.90
59
89320062A
PLUG, OIL DRAIN
08/01/2015
€
10.55
60
89410241A
OIL NET FILTER
08/01/2015
€
17.69
61
93040221A
SEAL, OIL 35X52X7
08/01/2015
€
21.22
62
93040932A
OIL SEAL
08/01/2015
€
3.90
63
93041233A
SEAL RING
08/01/2015
€
8.86
64
93041271A
OIL SEAL
08/01/2015
€
2.90
65
71110951A
PIN DOWEL
08/01/2015
€
2.90
66
85640141A
WASHER
27/03/2015
€
3.90
Add to basket
22523111C
COMPLETE HALF-CRANKCASES PAIR
€ 3115.94
Add to basket
067049310
BUSH
€ 1.90
Add to basket
24713511C
FILTER COVER UNIT
€ 10.00
Add to basket
45520181A
GEAR FIXING CLICK ASSEMBLY
€ 7.46
Add to basket
59320911A
VALVE, BREATHER
€ 68.55
Add to basket
46320222A
O-RING
€ 2.90
Add to basket
59310601B
HOLDER READ VALVE
€ 25.22
Add to basket
77150078B
SCREW
€ 0.90
Add to basket
77250341B
SCREW, TAPPING 3.5X12
€ 0.90
Add to basket
78811151A
GASKET
€ 2.90
Add to basket
81110021A
REED VALVE ASSY
€ 4.90
Add to basket
82716031A
SPACER
€ 3.90
Add to basket
68050101A
KEY 2X2X10
€ 14.30
Add to basket
70010362A
DAMPER
€ 8.83
Add to basket
764000004
BEARING, NEEDLE
€ 7.19
Add to basket
70240131A
BEARING
€ 79.71
Add to basket
70240331A
BEARING 17X40X12
€ 64.42
Add to basket
70241151A
BEARING
€ 106.42
Add to basket
70241161A
BEARING
€ 75.12
Add to basket
70250081A
BALL BEARING 6003 TN9 C3
€ 9.88
Add to basket
70250193A
BEARING
€ 24.34
Add to basket
71011991B
BUSHING
€ 94.10
Add to basket
71011941A
BUSHING
€ 91.00
Add to basket
72050338B
SCREW
€ 0.90
Add to basket
720941616
SCREW TSPEI M6X12
€ 0.90
Add to basket
735033380
CIRCLIP
€ 0.90
Add to basket
757941542
BEARING
€ 30.21
Add to basket
77150653B
SCREW TCEI M6X16 UNI5931 8.8
€ 0.90
Add to basket
87512321A
HOSE, OIL
€ 19.93
Add to basket
77510311B
SCREW TBEI M5X10
€ 3.90
Add to basket
77840041A
THREADED DOWEL M10X1
€ 1.90
Add to basket
77910391A
SCREW M8X21.5
€ 1.90
Add to basket
77911622A
SCREW TCEI M10X1.5X16
€ 1.90
Add to basket
77917101B
SCREW, SPECIAL
€ 1.90
Add to basket
74710151A
NUT
€ 0.90
Add to basket
77927171A
SCREW
€ 9.38
Add to basket
88641961A
O-RING
€ 0.90
Add to basket
77950621A
THREADED DOWEL M10X1
€ 0.90
Add to basket
78010721A
PLUG BY-PASS M16X1.5
€ 6.83
Add to basket
79910491A
SPRING, RETURN
€ 3.90
Add to basket
79920771C
BYPASS SPRING
€ 8.22
Add to basket
79940171A
SPRING
€ 1.90
Add to basket
81510281A
BOLT UNION
€ 7.21
Add to basket
83110151B
PLATE
€ 4.90
Add to basket
84740061A
BALL
€ 0.90
Add to basket
85210532A
WASHER 8.2X20X1
€ 0.90
Add to basket
85211951A
GASKET 10.5X17X2
€ 0.90
Add to basket
85250231A
GASKET
€ 0.90
Add to basket
85250421A
COPPER GASKET 12.2X18X1.5 MM
€ 0.90
Add to basket
85611481A
WASHER
€ 1.90
Add to basket
87512131A
JET
€ 36.02
Add to basket
88440531A
SPRING RING
€ 0.90
Add to basket
78011041A
SCREW, SPECIAL
€ 2.90
Add to basket
88440651A
SPRING RING
€ 1.90
Add to basket
88450581A
SPRING RING
€ 1.90
Add to basket
88640331A
O-RING 17.96X2.62
€ 1.90
Add to basket
88641181A
O-RING
€ 0.90
Add to basket
88641581A
O-RING
€ 1.90
Add to basket
89320062A
PLUG, OIL DRAIN
€ 10.55
Add to basket
89410241A
OIL NET FILTER
€ 17.69
Add to basket
93040221A
OIL SEAL
€ 21.22
Add to basket
93040932A
OIL SEAL
€ 3.90
Add to basket
93041233A
SEAL RING
€ 8.86
Add to basket
93041271A
SEAL RING 20X26X4
€ 2.90
Add to basket
71110951A
PIN DOWEL
€ 2.90
Add to basket
85640141A
WASHER
€ 3.90
Add to claim
22523111C
COMPLETE HALF-CRANKCASES PAIR
€3115.94
Add to claim
067049310
BUSH
€1.90
Add to claim
24713511C
FILTER COVER UNIT
€10.00
Add to claim
45520181A
GEAR FIXING CLICK ASSEMBLY
€7.46
Add to claim
59320911A
VALVE, BREATHER
€68.55
Add to claim
46320222A
O-RING
€2.90
Add to claim
59310601B
HOLDER READ VALVE
€25.22
Add to claim
77150078B
SCREW
€0.90
Add to claim
77250341B
SCREW, TAPPING 3.5X12
€0.90
Add to claim
78811151A
GASKET
€2.90
Add to claim
81110021A
REED VALVE ASSY
€4.90
Add to claim
82716031A
SPACER
€3.90
Add to claim
68050101A
KEY 2X2X10
€14.30
Add to claim
70010362A
DAMPER
€8.83
Add to claim
764000004
BEARING, NEEDLE
€7.19
Add to claim
70240131A
BEARING
€79.71
Add to claim
70240331A
BEARING 17X40X12
€64.42
Add to claim
70241151A
BEARING
€106.42
Add to claim
70241161A
BEARING
€75.12
Add to claim
70250081A
BALL BEARING 6003 TN9 C3
€9.88
Add to claim
70250193A
BEARING
€24.34
Add to claim
71011991B
BUSHING
€94.10
Add to claim
71011941A
BUSHING
€91.00
Add to claim
72050338B
SCREW
€0.90
Add to claim
720941616
SCREW TSPEI M6X12
€0.90
Add to claim
735033380
CIRCLIP
€0.90
Add to claim
757941542
BEARING
€30.21
Add to claim
77150653B
SCREW TCEI M6X16 UNI5931 8.8
€0.90
Add to claim
87512321A
HOSE, OIL
€19.93
Add to claim
77510311B
SCREW TBEI M5X10
€3.90
Add to claim
77840041A
THREADED DOWEL M10X1
€1.90
Add to claim
77910391A
SCREW M8X21.5
€1.90
Add to claim
77911622A
SCREW TCEI M10X1.5X16
€1.90
Add to claim
77917101B
SCREW, SPECIAL
€1.90
Add to claim
74710151A
NUT
€0.90
Add to claim
77927171A
SCREW
€9.38
Add to claim
88641961A
O-RING
€0.90
Add to claim
77950621A
THREADED DOWEL M10X1
€0.90
Add to claim
78010721A
PLUG BY-PASS M16X1.5
€6.83
Add to claim
79910491A
SPRING, RETURN
€3.90
Add to claim
79920771C
BYPASS SPRING
€8.22
Add to claim
79940171A
SPRING
€1.90
Add to claim
81510281A
BOLT UNION
€7.21
Add to claim
83110151B
PLATE
€4.90
Add to claim
84740061A
BALL
€0.90
Add to claim
85210532A
WASHER 8.2X20X1
€0.90
Add to claim
85211951A
GASKET 10.5X17X2
€0.90
Add to claim
85250231A
GASKET
€0.90
Add to claim
85250421A
COPPER GASKET 12.2X18X1.5 MM
€0.90
Add to claim
85611481A
WASHER
€1.90
Add to claim
87512131A
JET
€36.02
Add to claim
88440531A
SPRING RING
€0.90
Add to claim
78011041A
SCREW, SPECIAL
€2.90
Add to claim
88440651A
SPRING RING
€1.90
Add to claim
88450581A
SPRING RING
€1.90
Add to claim
88640331A
O-RING 17.96X2.62
€1.90
Add to claim
88641181A
O-RING
€0.90
Add to claim
88641581A
O-RING
€1.90
Add to claim
89320062A
PLUG, OIL DRAIN
€10.55
Add to claim
89410241A
OIL NET FILTER
€17.69
Add to claim
93040221A
OIL SEAL
€21.22
Add to claim
93040932A
OIL SEAL
€3.90
Add to claim
93041233A
SEAL RING
€8.86
Add to claim
93041271A
SEAL RING 20X26X4
€2.90
Add to claim
71110951A
PIN DOWEL
€2.90
Add to claim
85640141A
WASHER
€3.90
