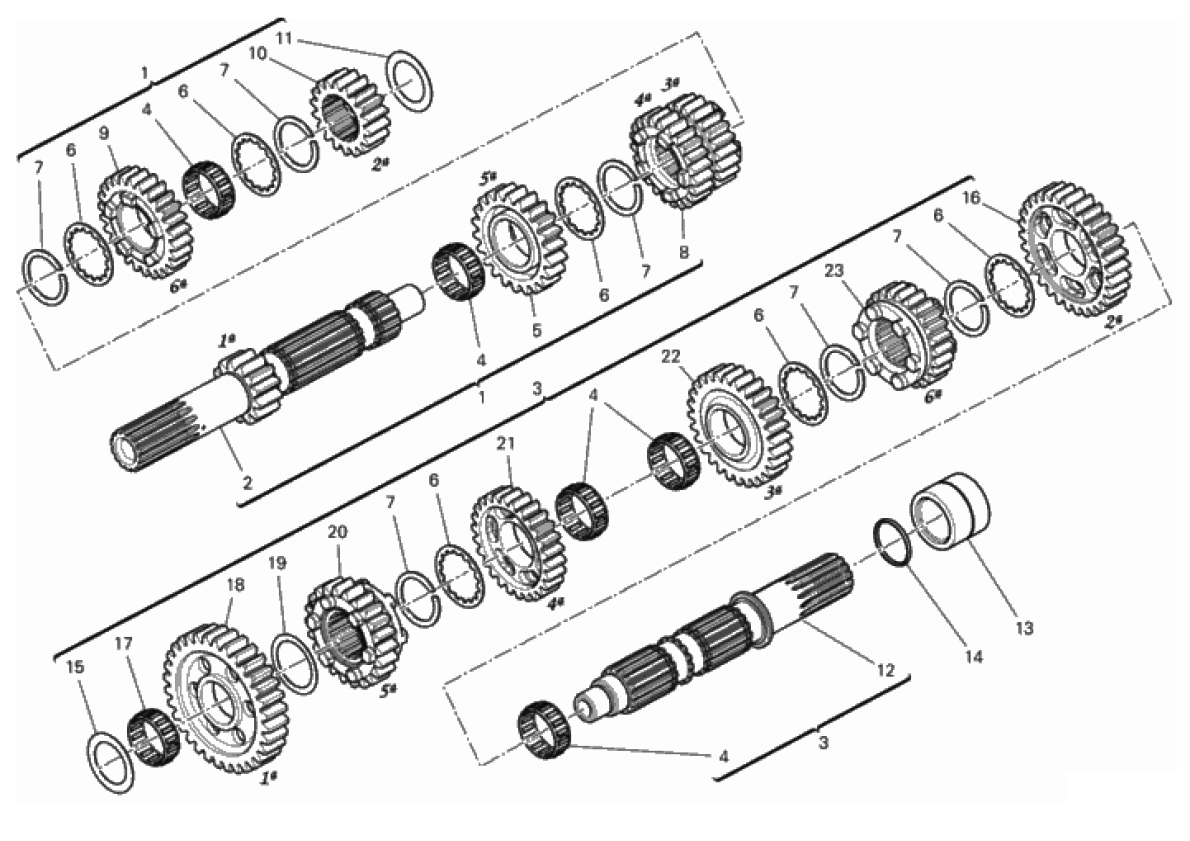

No.
Code
Name
Price
No.
Code
Name
Price
1
15021431E
COMPLETE MAIN SHAFT
€
1049.95
2
14910831D
GEARBOX MAIN SHAFT
€
377.56
3
15021941B
COMPLETE LAY SHAFT
€
1046.96
4
70140051A
BEARING, NEEDLE
€
8.04
5
17213291C
GEAR DRIVE 5TH SPEED
€
121.93
6
85611372A
WASHER LOCK 28X32.5X1
€
2.90
7
88210151A
SPRING RING 25X29X2.4
€
0.90
8
17213281C
GEAR, 3RD-4TH PINION
€
224.26
9
17213301C
GEAR DRIVE 6TH SPEED
€
134.55
10
17213271A
DRIVING GEAR 2ND SP.
€
93.84
11
71310141E
THRUST WASHER 20.3X32X1.6
€
0.90
12
14910891C
DRIVEN SHAFT
€
280.16
13
71314771A
SPACER
€
15.43
14
46320537A
O-RING
€
0.90
15
71312661A
THRUST WASHER 17.3X31X3.15
€
2.90
16
17213321A
DRIVEN GEAR 2ND SP.
€
143.68
17
764020002
BEARING, NEEDLE
€
9.58
18
17213311A
DRIVEN GEAR 1ST SP.
€
143.68
19
067016155
THRUST WASHER 1 MM
€
1.90
20
17213351B
DRIVEN GEAR 5TH SPEED 23T
€
154.19
21
17213341B
DRIVEN GEAR 4TH SPEED T:24
€
115.65
22
17213331B
DRIVEN GEAR 3RD SPEED T27
€
117.03
23
17213361B
DRIVEN GEAR 6TH SPEED T22
€
151.93
Add to basket
15021431E
COMPLETE MAIN SHAFT
€ 1049.95
Add to basket
14910831D
GEARBOX MAIN SHAFT
€ 377.56
Add to basket
15021941B
COMPLETE LAY SHAFT
€ 1046.96
Add to basket
70140051A
BEARING, NEEDLE
€ 8.04
Add to basket
17213291C
GEAR DRIVE 5TH SPEED
€ 121.93
Add to basket
85611372A
WASHER LOCK 28X32.5X1
€ 2.90
Add to basket
88210151A
SPRING RING 25X29X2.4
€ 0.90
Add to basket
17213281C
GEAR, 3RD-4TH PINION
€ 224.26
Add to basket
17213301C
GEAR DRIVE 6TH SPEED
€ 134.55
Add to basket
17213271A
DRIVING GEAR 2ND SP.
€ 93.84
Add to basket
71310141E
THRUST WASHER 20.3X32X1.6
€ 0.90
Add to basket
14910891C
DRIVEN SHAFT
€ 280.16
Add to basket
71314771A
SPACER
€ 15.43
Add to basket
46320537A
O-RING
€ 0.90
Add to basket
71312661A
THRUST WASHER 17.3X31X3.15
€ 2.90
Add to basket
17213321A
DRIVEN GEAR 2ND SP.
€ 143.68
Add to basket
764020002
BEARING, NEEDLE
€ 9.58
Add to basket
17213311A
DRIVEN GEAR 1ST SP.
€ 143.68
Add to basket
067016155
THRUST WASHER 1 MM
€ 1.90
Add to basket
17213351B
DRIVEN GEAR 5TH SPEED 23T
€ 154.19
Add to basket
17213341B
DRIVEN GEAR 4TH SPEED T:24
€ 115.65
Add to basket
17213331B
DRIVEN GEAR 3RD SPEED T27
€ 117.03
Add to basket
17213361B
DRIVEN GEAR 6TH SPEED T22
€ 151.93
Add to claim
15021431E
COMPLETE MAIN SHAFT
€1049.95
Add to claim
14910831D
GEARBOX MAIN SHAFT
€377.56
Add to claim
15021941B
COMPLETE LAY SHAFT
€1046.96
Add to claim
70140051A
BEARING, NEEDLE
€8.04
Add to claim
17213291C
GEAR DRIVE 5TH SPEED
€121.93
Add to claim
85611372A
WASHER LOCK 28X32.5X1
€2.90
Add to claim
88210151A
SPRING RING 25X29X2.4
€0.90
Add to claim
17213281C
GEAR, 3RD-4TH PINION
€224.26
Add to claim
17213301C
GEAR DRIVE 6TH SPEED
€134.55
Add to claim
17213271A
DRIVING GEAR 2ND SP.
€93.84
Add to claim
71310141E
THRUST WASHER 20.3X32X1.6
€0.90
Add to claim
14910891C
DRIVEN SHAFT
€280.16
Add to claim
71314771A
SPACER
€15.43
Add to claim
46320537A
O-RING
€0.90
Add to claim
71312661A
THRUST WASHER 17.3X31X3.15
€2.90
Add to claim
17213321A
DRIVEN GEAR 2ND SP.
€143.68
Add to claim
764020002
BEARING, NEEDLE
€9.58
Add to claim
17213311A
DRIVEN GEAR 1ST SP.
€143.68
Add to claim
067016155
THRUST WASHER 1 MM
€1.90
Add to claim
17213351B
DRIVEN GEAR 5TH SPEED 23T
€154.19
Add to claim
17213341B
DRIVEN GEAR 4TH SPEED T:24
€115.65
Add to claim
17213331B
DRIVEN GEAR 3RD SPEED T27
€117.03
Add to claim
17213361B
DRIVEN GEAR 6TH SPEED T22
€151.93
