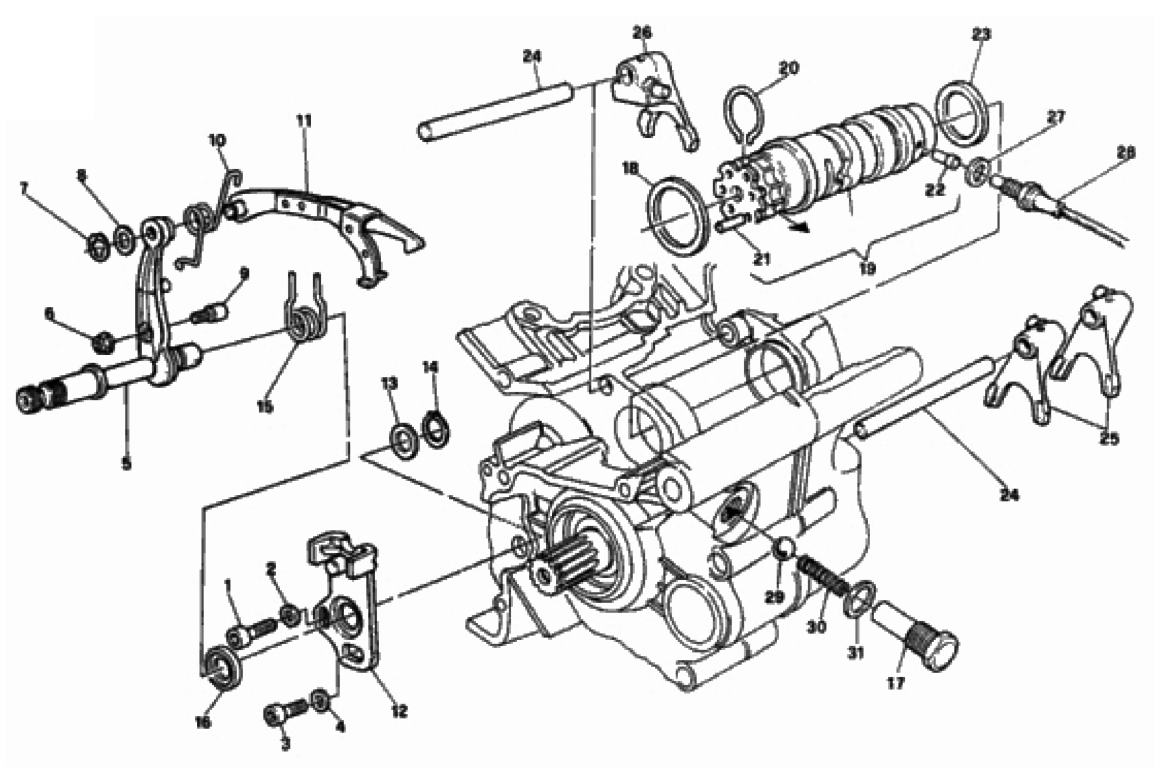

| 1 |
77150678B
|
BOLT, SOCKET HEAD M6X20
|
€
0.50
|
|
|
| 2 |
46230038A
|
WASHER
|
€
0.50
|
|
|
| 3 |
77151222B
|
SCREW M8X18
|
€
0.61
|
|
|
| 4 |
85310021A
|
WASHER, SPRING
|
€
0.07
|
|
|
| 5 |
82110011A
|
GEAR SELECTOR SHAFT
|
€
134.90
|
|
|
| 6 |
74810401A
|
NUT, FLANGE
|
€
0.89
|
|
|
| 7 |
88450341B
|
RING, BENZING 8MM DIN 6799
|
€
0.50
|
|
|
| 8 |
076592205
|
THRUST WASHER 10.5X15X0.2
|
€
0.89
|
|
|
| 9 |
066013165
|
GEARCHANGE LEVER PIN
|
€
8.43
|
|
|
| 10 |
79912961A
|
RETURN SPRING
|
€
2.41
|
|
|
| 11 |
18020261A
|
CONTROL FORK
|
€
19.25
|
|
|
| 12 |
82610091A
|
STOPPER PLATE
|
€
19.64
|
|
|
| 13 |
040029126
|
THRUST WASHER 15.5X22X0.5
|
€
1.21
|
|
|
| 13 |
040029125
|
THRUST WASHER 15.5X22X0.2
|
€
1.21
|
|
|
| 14 |
735001542
|
CIRCLIP 15 DIN 471
|
€
0.50
|
|
|
| 15 |
79915061A
|
SPRING SHIFT RETURN
|
€
3.34
|
|
|
| 16 |
88110121A
|
CENTERING RING
|
€
18.36
|
|
|
| 17 |
066013133
|
PEG HOLDER
|
€
12.96
|
|
|
| 18 |
066013060
|
THRUST WASHER 45.2X49X1.0
|
€
0.99
|
|
|
| 18 |
066013062
|
THRUST WASHER 45.2X49X0.3
|
€
1.09
|
|
|
| 18 |
066013061
|
THRUST WASHER 45.2X49X0.2
|
€
1.09
|
|
|
| 19 |
18220012A
|
CAM, GEAR SHIFT
|
€
68.63
|
|
|
| 19 |
18220011A
|
FORK DRUM
|
€
109.98
|
|
|
| 20 |
066013057
|
NEEDLE RETAINING RING
|
€
0.52
|
|
|
| 20 |
88210061A
|
NEEDLE RETAINING RING
|
€
1.81
|
|
|
| 21 |
82110701A
|
SPECIAL ROLLER
|
€
1.26
|
|
|
| 21 |
066013050
|
SPECIAL ROLLER
|
€
0.50
|
|
|
| 22 |
066013045
|
WARN. LIGHT CONTROL PIN
|
€
1.71
|
|
|
| 23 |
85210071A
|
THRUST WASHER 0.3 MM
|
€
2.30
|
|
|
| 23 |
85210061A
|
THRUST WASHER 0. 2MM
|
€
0.59
|
|
|
| 23 |
85210051A
|
THRUST WASHER 1 MM
|
€
1.45
|
|
|
| 24 |
066013070
|
AXLE, GEAR SHIFT FORK 10X116 MM
|
€
7.96
|
|
|
| 25 |
18010011A
|
SHIFT FORK 1ST-4TH 2ND-3RD
|
€
65.07
|
|
|
| 26 |
180Z0041A
|
FORK-SHIFT, 5TH&6TH
|
€
65.07
|
|
|
| 27 |
85211971A
|
GASKET 2 MM
|
€
0.50
|
|
|
| 27 |
42020008A
|
COPPER GASKET 11X8.2X1
|
€
0.50
|
|
|
| 27 |
050403085
|
GASKET 1.5 MM
|
€
0.50
|
|
|
| 28 |
53910072A
|
NEUTRAL LIGHT SWITCH
|
€
28.35
|
|
|
| 29 |
768351134
|
BALL 11MM
|
€
0.50
|
|
|
| 30 |
066013143
|
GEAR SELECTOR SPRING
|
€
0.91
|
|
|
| 31 |
027291090
|
GASKET 16.2X24X2
|
€
0.50
|
|
|
