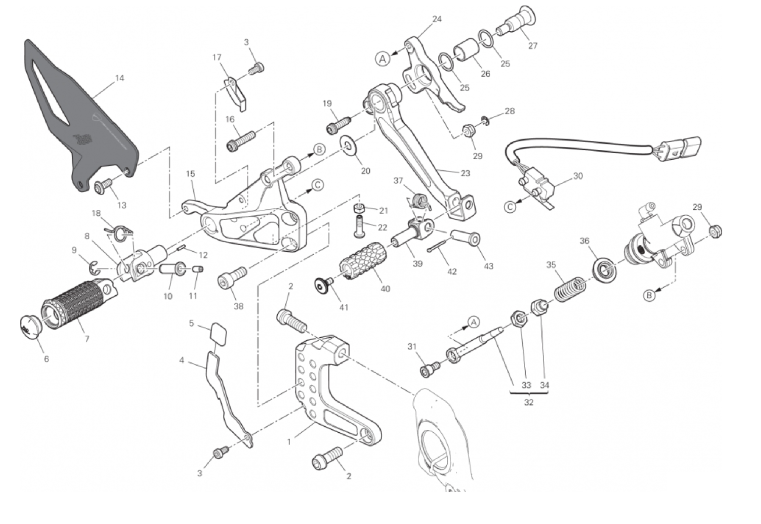

| 1 |
96211391AA
|
BRACKET FRONT RIGHT FOOTREST
|
1 |
€
96.39
|
|
|
| 2 |
77157248B
|
SCREW TCEIF M8X22
|
2 |
€
1.90
|
|
|
| 3 |
77354713B
|
SCREW TCEIR M5X10 DIN6912 8.8
|
3 |
€
0.90
|
|
|
| 4 |
97612111AA
|
PLATE
|
4 |
€
17.14
|
|
|
| 5 |
76414381A
|
RUBBER PAD
|
5 |
€
3.90
|
|
|
| 6 |
96211111A
|
LEFT PROTECTION PLATE
|
6 |
€
4.90
|
|
|
| 7 |
96211102AA
|
RIGHT FOOTREST
|
7 |
€
112.46
|
|
|
| 8 |
96211411AA
|
SNODO PEDANA PIEGHEVOLE
|
8 |
€
27.85
|
|
|
| 9 |
88450821A
|
SPRING RING
|
9 |
€
0.90
|
|
|
| 10 |
96211201A
|
FOOTREST PIN
|
10 |
€
8.28
|
|
|
| 11 |
77850381A
|
SCREW M5X10 FOOTREST PIN
|
11 |
€
0.90
|
|
|
| 12 |
86050041A
|
PIN
|
12 |
€
0.90
|
|
|
| 13 |
77244178B
|
SCREW
|
13 |
€
0.90
|
|
|
| 14 |
24716431AA
|
HEEL GUARD FRONT RH CARBON
|
14 |
€
70.90
|
|
|
| 15 |
96211371AA
|
R.H. FOOT PEG HOLDER PLATE
|
15 |
€
278.46
|
|
|
| 16 |
77156698B
|
SCREW M6X25
|
16 |
€
1.90
|
|
|
| 17 |
97612121AA
|
COVER
|
17 |
€
18.21
|
|
|
| 18 |
96211211A
|
SPRING, RETURN LEFT FOOTREST
|
18 |
€
3.90
|
|
|
| 19 |
97612101AA
|
VITE SPECIALE M6X20
|
19 |
€
4.90
|
|
|
| 20 |
85211511A
|
WASHER
|
20 |
€
0.90
|
|
|
| 21 |
74750031A
|
NUT 6MM
|
21 |
€
0.90
|
|
|
| 22 |
77912371B
|
SCREW
|
22 |
€
2.90
|
|
|
| 23 |
96211421AA
|
BRAKE LEVER ASSEMBLY
|
23 |
€
189.57
|
|
|
| 24 |
96211431AA
|
BIELLETTA RINVIO PEDALE FRENO
|
24 |
€
42.84
|
|
|
| 25 |
88641161A
|
O-RING
|
25 |
€
0.90
|
|
|
| 26 |
71210341A
|
BUSH
|
26 |
€
2.90
|
|
|
| 27 |
82111701CA
|
PIN PEDAL
|
27 |
€
4.90
|
|
|
| 28 |
88450021A
|
SPRING RING
|
28 |
€
0.90
|
|
|
| 29 |
74940041A
|
NUT, SELF-LOCKING M6
|
29 |
€
0.90
|
|
|
| 30 |
53920421C
|
SWITCH, REAR BRAKE
|
30 |
€
37.27
|
|
|
| 31 |
82113811AA
|
PIN
|
31 |
€
5.84
|
|
|
| 32 |
96221471AA
|
PIN REAR BRAKE PUMP
|
32 |
€
23.56
|
|
|
| 33 |
74750071A
|
NUT
|
33 |
€
0.90
|
|
|
| 34 |
97611101A
|
NUT M8
|
34 |
€
11.82
|
|
|
| 35 |
97611091A
|
SPRING, RETURN FRENO POSTERIORE
|
35 |
€
2.90
|
|
|
| 36 |
97611081A
|
BUSH PIN
|
36 |
€
7.09
|
|
|
| 37 |
96211271A
|
SPRING, RETURN PEDAL, BRAKE
|
37 |
€
1.90
|
|
|
| 38 |
97611181A
|
SCREW, SPECIAL M8
|
38 |
€
5.92
|
|
|
| 39 |
96211461AA
|
PEDAL, GEAR CHANGE
|
39 |
€
12.85
|
|
|
| 40 |
96211222A
|
COVER PEDAL
|
40 |
€
5.92
|
|
|
| 41 |
77914871A
|
SCREW TBEI M5X12
|
41 |
€
3.90
|
|
|
| 42 |
68540071A
|
COTTER PIN
|
42 |
€
0.90
|
|
|
| 43 |
96211261A
|
SHAFT, BRAKE
|
43 |
€
13.01
|
|
|
